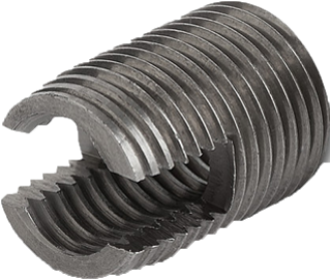

SELF-CUTTING THREAD INSERTS


Various thread pitches and thin wall sizes

Internal Thread (mm) External Thread (mm) Length (mm)
2.5 4.5 6
3 5 6
4 6.5 8
5 8 10
6 10 14
8 12 15
10 14 18
12 16 22
14 18 22
16 20 22
18 22 24
20 26 27
22 26 30
24 30 30
27 34 30
30 36 40
Back to Top

WOOD INSERTS


FINISH   Yellow Passivated


Size (mm) Length (mm)

6                      13

6                      20

8                      13

8                      20

Size (mm) Length (mm)
6 13
6 20
8 13
8 20
